Description
Gigabit Performance.
This embedded appliance delivers gigabit performance yet doesn’t make a sound.
The specially designed cooling profile allows for cool operation even when stressed to the max.
3.300Mbps Throughput 250.000 Packets per Second
327Mbps Inline High Speed Intrusion Prevention &
SSL Finger Printing
Fast Filtering
35.000 connections P/S Low Latency ~1.6mS (with CoDel & Traffic Shaper)
Hardware Assisted Encryption 600Mbps IPsec (AES256GCM16)
Guard Web Access Filtering (SSL) Proxy Captive Portal with Voucher support
16GB SSD
4GB Memory
Offering Sufficient Space for Logging & Reporting
System wide two-factor authentication. Compatible with Google Authenticator.
Hardware Specifications

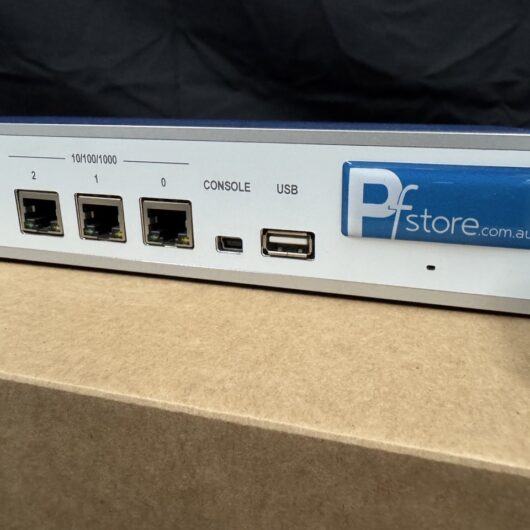

GbE RJ45 Ports [ 10/100/1000Mbps ] 4 4
USB Ports 1 1
Console Port 1 1
Internal Storage 16GB Solid State Flash 256GB Solid State Flash
Memory 4GB DDR3 8GB DDR3
CPU Cores 4 (1.6Ghz) (1.6Ghz)
Virtual Interfaces (802.1q VLANS)1 4093 4093
System Performance
Firewall Throughput 3300Mbps 3300Mpbs
Firewall Packets Per Second 250Kpps 250Kpps
Firewall Port to Port Throughput 941Mbps 941Mpbs
Firewall Port to Port Packets Per Second 78Kpps 78Kpps
Concurrent Sessions 3000000 7000000
Firewall Latency (average) 200us 200us
Firewall Policies (Recommended Maximum)1 10000 10000
IPsec VPN Throughput (AES256GCM16) 600Mbps 600Mbps
High Availability with State Synchronisation Requires Two Requires Two
Dimensions
Height x Width x Length (mm) 27 x 200 x 146 27 x 200 x 146
Height x Width x Length (inches) 1.067 x 7.87 x 5,75 1.067 x 7.87 x 5,75
Form Factor Desktop (optional Wallmount) Desktop (optional Wallmount)
Weight (appliance only) 0.9Kg 1Kg
Environment
Power Requirements 100-240VAC, 50-60Hz 100-240VAC, 50-60Hz
Power Consumption (Typical) 25W 25W
Heat Dissipation 85 BTU/hr 85 BTU/hr
Operating Temperature 0 to +45°C 0 to +45°C
Storage Temperature -20 to +70°C -20 to +70°C
Humidity 10-90% non-condensing 10-90% non-condensing
Regulatory Compliance
FCC part 15 Class A, CE, Rohs FCC part 15 Class A, CE, Rohs
1 The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical.
Total Firewall Throughput is calculated based on system utilization and actual measured port-to-port performance (if both numbers are the same no measurement of system utilization was recorded and maximum theoretical throughput is likely to be higher). Maximum PPS is measured using IMIX. All throughput numbers are based upon maximum packets per second multiplied by standard 1514byte frame size minus additional overhead where applicable. IPsec traffic is measured using AES256GCM16 via a routed tunnel.Latency is measured as an average over 60 seconds with system at 80% of maximum load and 256byte UDP packages . IPS performance is measured using a EMIX simulation. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks.
